Product Summary
The TMS32C6414EZLZ5E0 is the highest-performance fixed-point DSP generation in the TMS320C6000 DSP platform. The TMS32C6414EZLZ5E0 device is based on the second-generation high-performance, advanced VelociTI very-long-instruction-word (VLIW) architecture (VelociTI.2) developed by Texas Instruments (TI), making these DSPs an excellent choice for multichannel and multifunction applications.
Parametrics
Absolute maximum ratings: (1)Supply voltage ranges: CVDD: -0.3 V to 1.8 V; (2)DVDD: -0.3 V to 4 V; (3)Input voltage ranges: (except PCI), VI: -0.3 V to 4 V; (4)(PCI), VIP [C6415 and C6416 only]: -0.5 V to DVDD + 0.5 V; (5)Output voltage ranges: (except PCI), VO: -0.3 V to 4 V; (6)(PCI), VOP [C6415 and C6416 only]: -0.5 V to DVDD + 0.5 V; (7)Operating case temperature ranges, TC: (default): 0℃ to 90℃; (8)(A version) [A-5E0, A-6E3]: -40℃ to 105℃; (9)Storage temperature range, Tstg: -65℃ to 150℃.
Features
Features: (1)Highest-Performance Fixed-Point Digital Signal Processors (DSPs); (2)VelociTI.2 Extensions to VelociTI Advanced Very-Long-Instruction-Word (VLIW) TMS320C64x DSP Core; (3)Instruction Set Features; (4)Viterbi Decoder Coprocessor (VCP) [C6416]; (5)L1/L2 Memory Architecture; (6)Two External Memory Interfaces (EMIFs); (7)Enhanced Direct-Memory-Access (EDMA) Controller (64 Independent Channels); (8)Host-Port Interface (HPI).

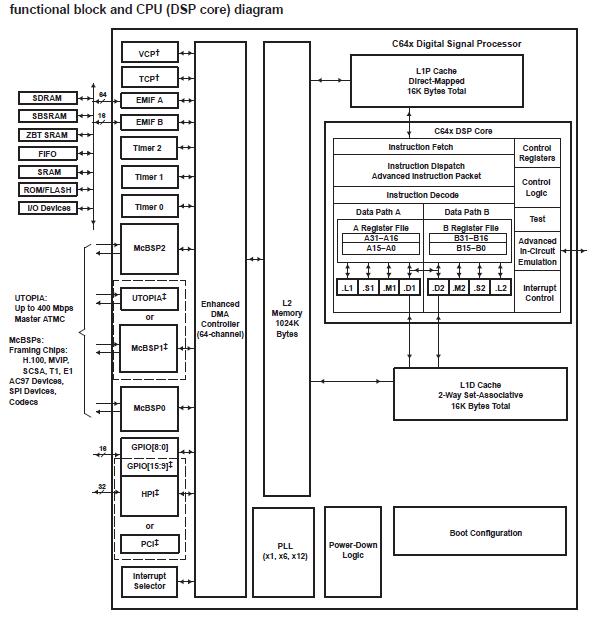

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMS32C6414EZLZ5E0 |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Fixed-Pt Dig Signal Processor |
Data Sheet |
|
|
||||||||
