Product Summary
The OPA376AIDBVR is a low-noise operational amplifier. It is availble in MicroSIZE SC70-5, SOT23-5, and SO-8 packages.
Parametrics
Absolute maximum ratings: (1)supply voltage:+7V; (2)output short-circuit:continuous; (3)operating temperature:-40℃ to +150℃; (4)storage temperature:-65℃ to +150℃; (5)junction temperature:+150℃; (6)human body model:4000V; (7)charged device model:1000V; (8)machine model:200V.
Features
Features: (1)low noise:7.5nV/Hz at 1kHz; (2)0.1Hz to 10Hz noise:0.8μVpp; (3)quiescent current:950μA(max); (4)low offset voltage:25μV(max); (5)single-supply operation; (6)supply voltage:2.2V to 5.5V.

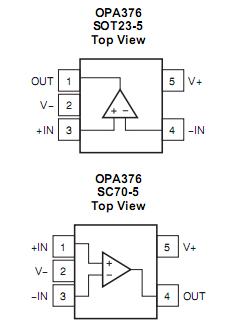

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA376AIDBVR |
Texas Instruments |
Operational Amplifiers - Op Amps Prec Low Noise Low Iq Op Amp |
Data Sheet |
|
|
||||||||
|
OPA376AIDBVRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Prec Lo Noise Lo Iq Op Amp |
Data Sheet |
|
|
||||||||
