Product Summary

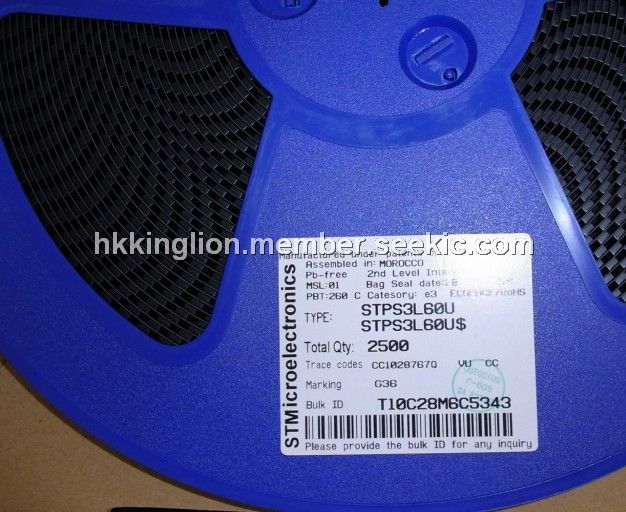

The STPS3L60U is a power schottky rectifier. It is suited for Switch Mode Power Supplies and high frequency DC to DC converters. Packaged in DO-201AD, DO-15 and SMB.
Parametrics
Absolute maximum ratings: (1)Surge non repetitive forward current:100A; (2)Repetitive peak avalanche power:2000W; (3)Storage temperature range:- 65℃ to + 150℃; (4)Maximum operating junction temperature:150℃; (5)Critical rate of rise of reverse voltage:10000 V/μs; (6)Repetitive peak reverse voltage:6 V; (7)RMS forward current:10A.
Features
Features: (1)negligible switching losses; (2)low thermal resistance; (3)avalanche capability specified.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STPS3L60U |
STMicroelectronics |
Schottky (Diodes & Rectifiers) 3.0 Amp 60 Volt |
Data Sheet |
|
|
||||||||||||
|
STPS3L60UF |
STMicroelectronics |
Schottky (Diodes & Rectifiers) PWR Schottky 3A 60V Vrrm .61VF |
Data Sheet |
|
|
||||||||||||
