Product Summary

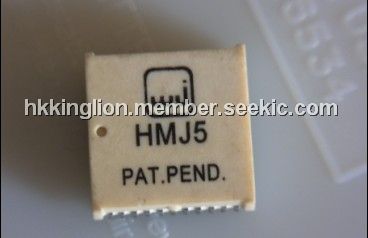

The HMJ5 is a high dynamic range, GaAs FET mixer. This active FET mixer realizes a typical third order intercept point of +35 dBm at an LO drive level of +17 dBm. The HMJ5 comes in a low cost, J-Lead package. Typical applications include frequency up/down conversion, modulation and demodulation for receivers and transmitters used in communications systems.
Parametrics
Absolute maximum ratings: (1)Operating Case Temperature: -40 to +85℃; (2)Storage Temperature: -65 to +100℃; (3)Maximum Input Power: +25 dBm.
Features
Features: (1)+35 dBm IIP3; (2)No external matching element Required; (3)RF 40-1000 MHz; (4)LO 30-900 MHz; (5)IF 5-250 MHz; (6)+17 dBm LO Drive Level; (7)+3V at 35 mA DC Power Supply; (8)Low Cost Surface Mount J-Lead Package.

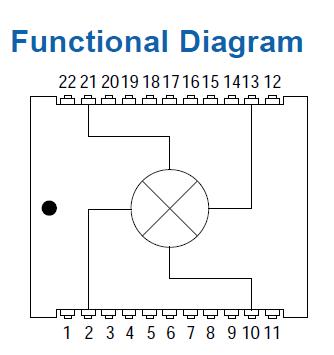

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 HMJ5 |
TriQuint Semiconductor |
Up-Down Converters 40 - 1000MHz RF +35dBm IIP3 |
Data Sheet |
Negotiable |
|
||||
|
HMJ5-PCB |
TriQuint Semiconductor |
RF Development Tools 40-1000MHz Eval Brd Triple-balanced |
Data Sheet |
Negotiable |
|
||||
