Product Summary
The SC802-04 is a schottky barrier diode. It is suitable for high speed switching.
Parametrics
Absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 40V; (2)Non-repetitive peak reverse voltage, VRSM: 48V when tw=500ns, duty=1/40; (3)Average output current, Io: 1.0A when resistive load T1=115℃; (4)Surge current, IFSM: 40A when sine wave 10ms; (5)Operating junction temperature, Tj: -40 to +150℃; (6)Storage temperature, Tstg: -40 to +150℃.
Features
Features: (1)Surface-mount device; (2)Low VF; (3)Super high speed switching; (4)High reliability by planer design.

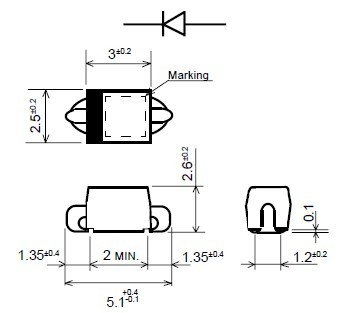

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SC802-04 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
